Name: Class 1 Platform Steps
Brand: Chase Ladders
Price: 166.00 GBP

Product Description

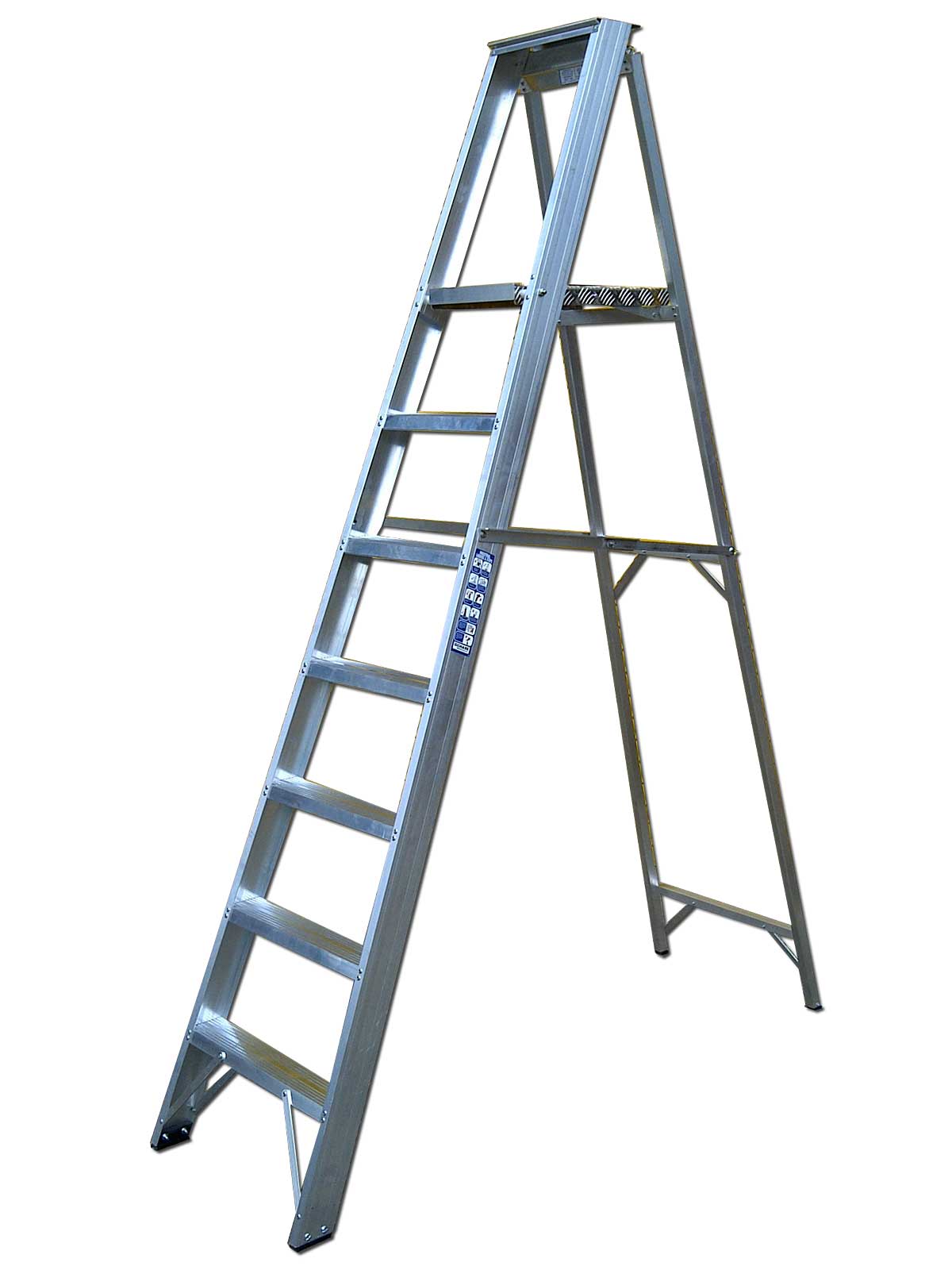

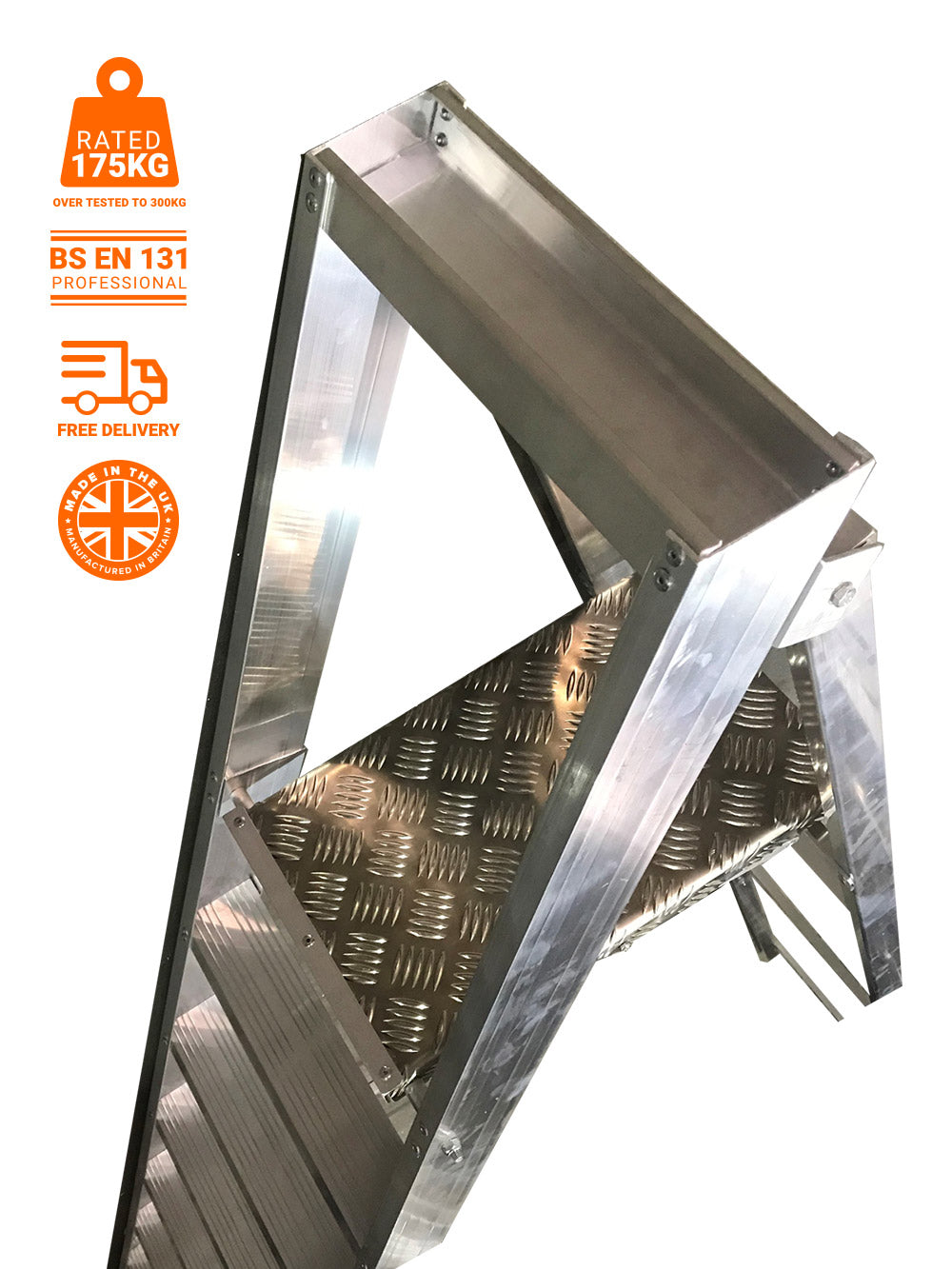

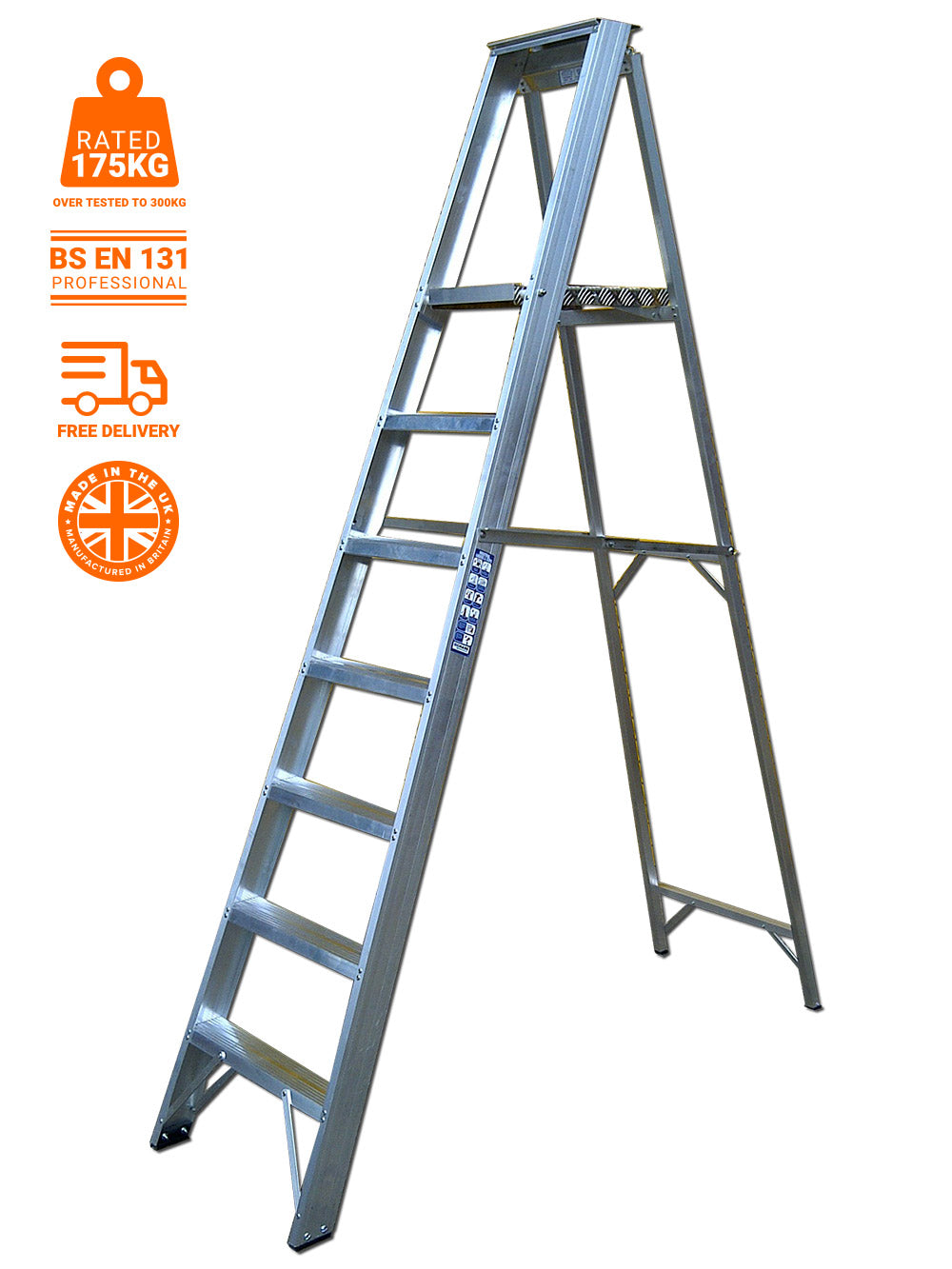

Aluminium Class 1 Platform Steps Complies and Exceeds BSEN-131 load rating of 150KG Industrial manufactured by Chase Manufacturing based in Great Britain. New & Improved design includes tool storage area and heavy gauge hinge plates. These heavy duty steps feature a 175KG maximum permissible vertical static load and a 130KG Duty rating. Double riveted treads (8 rivets per tread), 80mm deep non slip deeply serrated treads, Non-slip rubber feet and a Large 250mm wide x 430mm deep platform make this Platform Step extremely sturdy and durable. Exceeds minimum load requirement of new EN131 standard.

Spec Table

Model Code	Platform Height (M)	Overall Height (M)	Overall Length (M)	No. Of Treads*	Weight (KG)
CPS3	0.74	1.23	1.37	3	5.20
CPS4	0.98	1.47	1.64	4	6.40
CPS5	1.23	1.72	1.90	5	7.50
CPS6	1.47	1.96	2.17	6	8.70
CPS7	1.72	2.20	2.43	7	10.30
CPS8	1.96	2.45	2.69	8	11.90
CPS9	2.20	2.70	2.96	9	12.80
CPS10	2.45	2.94	3.22	10	13.70
CPS11	2.70	3.17	3.49	11	14.80
CPS12	2.94	3.42	3.76	12	16.00

Spec Sheets

Download PDF

Class 1 Platform Steps
