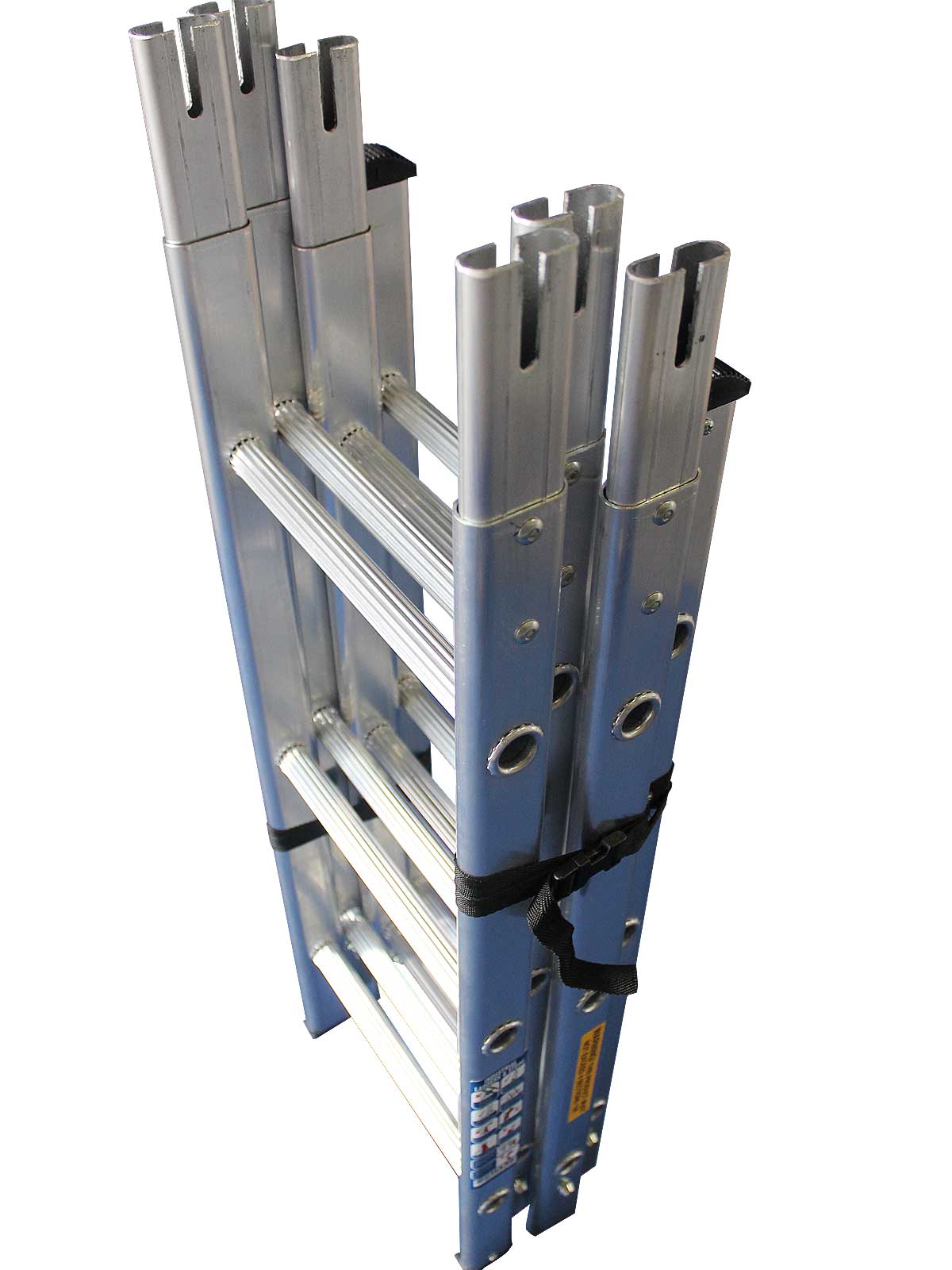

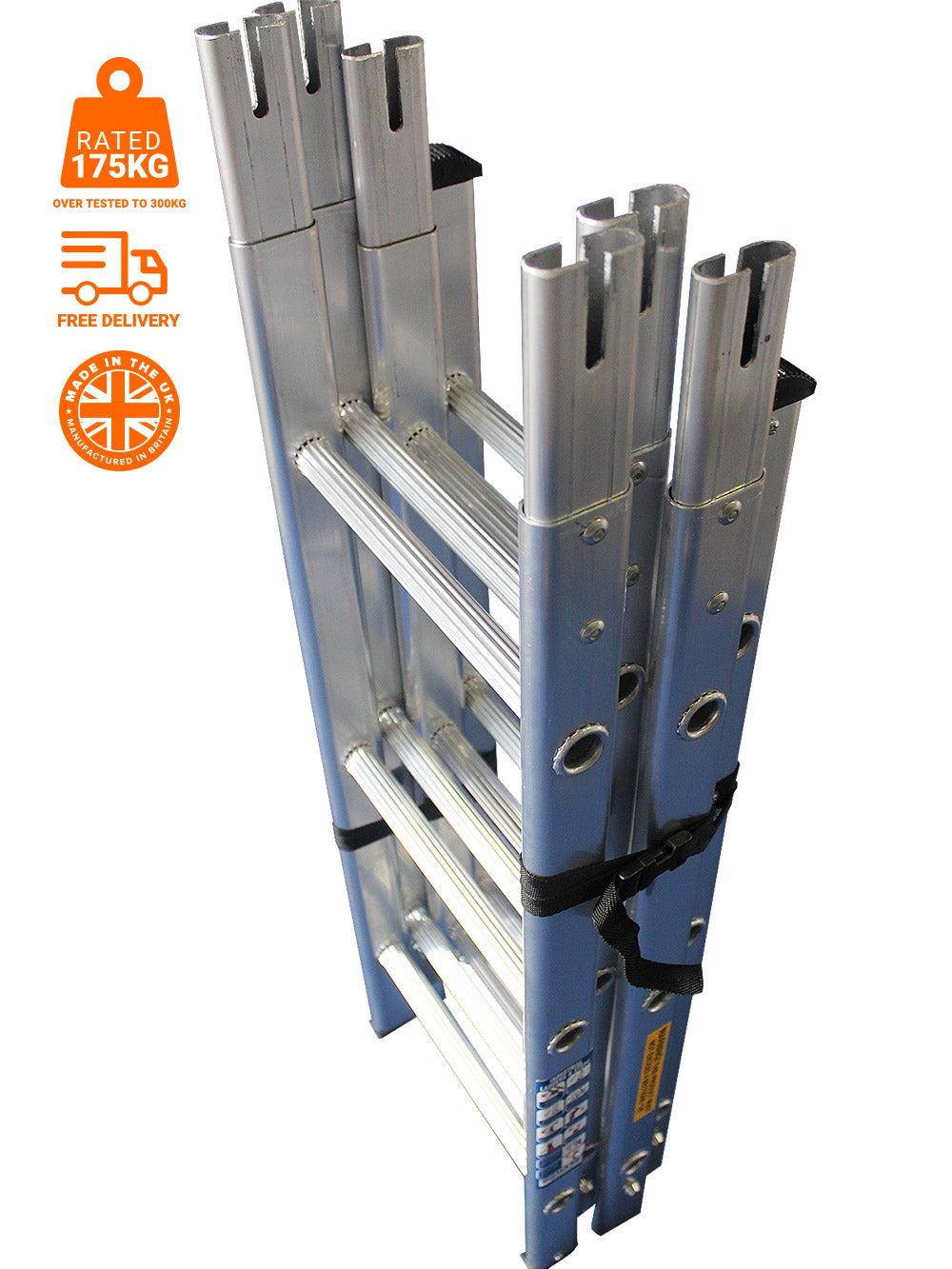

Standard Sectional Surveyor's Ladders

Aluminium Sectional Surveyor’s Ladders are designed and manufactured in the UK by Chase Ladders for professional users who need a compact, portable, and reliable access solution.

The Commercial Surveyor’s Unit (CSU) range uses sectional components to provide a maximum ladder length of 3.65m, while remaining small enough to carry in the boot of a car.

Key Features

• Designed and manufactured in the UK by Chase Ladders
• Commercial Surveyor’s Unit sectional ladder system
• Maximum assembled length: 3.65m
• Each section: 900mm long x 320mm wide
• Closed length: 1.03m
• Closed width: 345mm
• Aluminium spigots
• Rungs at 300mm centres
• Captive wing nuts for quick and easy assembly and disassembly
• Strong oval box-section stiles for added strength and rigidity
• Rubber feet fitted top and bottom
• Deeply serrated round rungs
• Supplied with nylon stowage straps and quick-release buckles

Designed for Professional Surveyors

This ladder range is designed with the professional surveyor in mind, offering compact transport, quick setup, and dependable field performance.

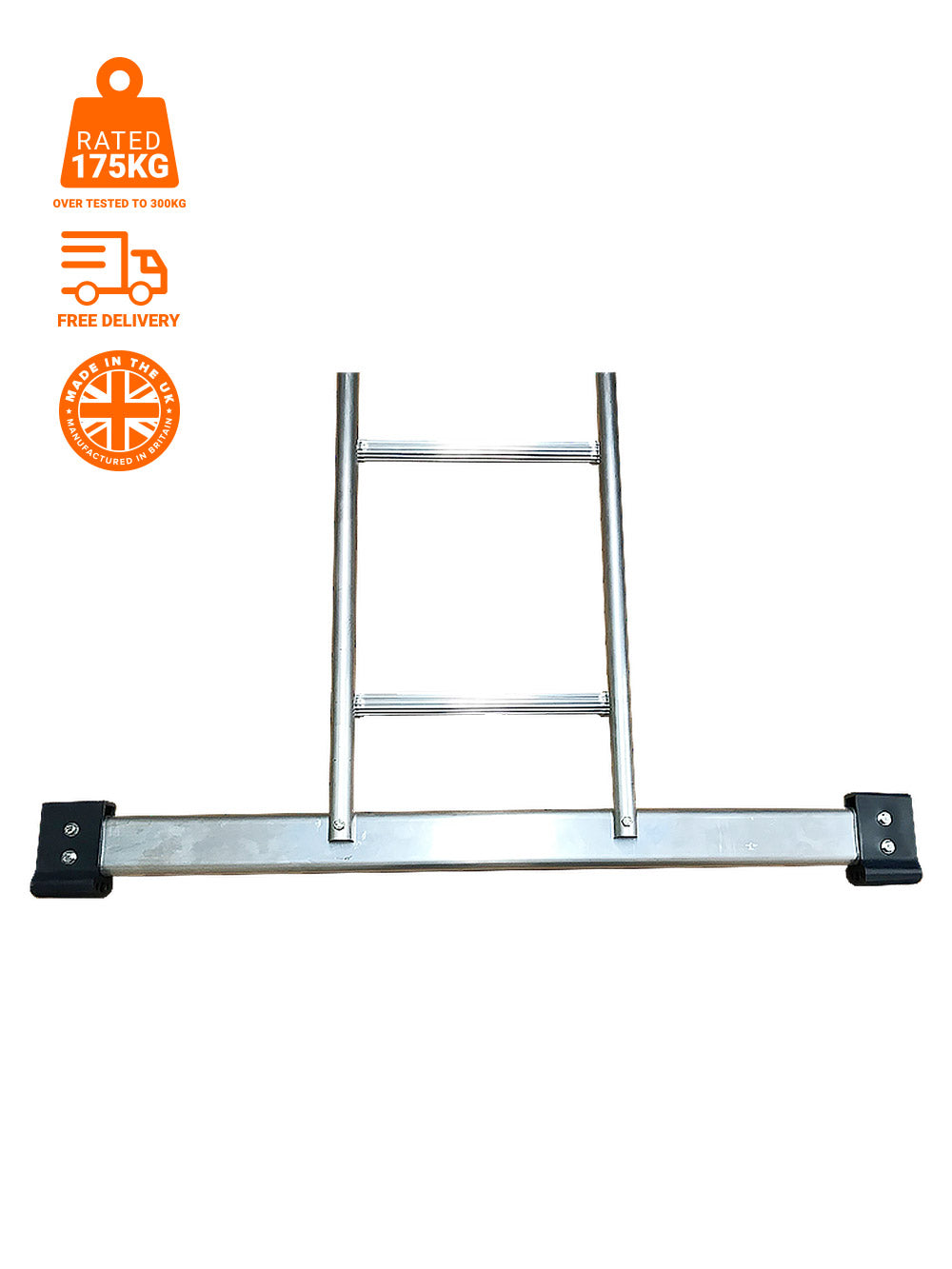

Lateral Base Stabilising Bars

We are pleased to offer lateral base stabilising bars on our CSU range as a factory-fitted option.

Although slot-together sectional ladders are not currently covered specifically by BS EN 131-1:2015, other leaning ladders over 3 metres are required to be fitted with lateral base stabilising bars. In line with good practice and safety guidance, this option helps improve side stability during use.
